6x48" belt sander plans

6x48" belt sander plans

Regular price $26.00 CAD
Regular price Sale price $26.00 CAD
Sale Sold out
Shipping calculated at checkout.

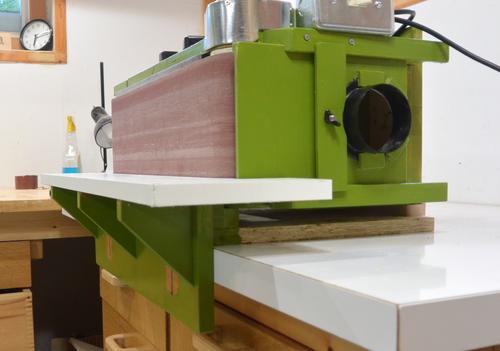

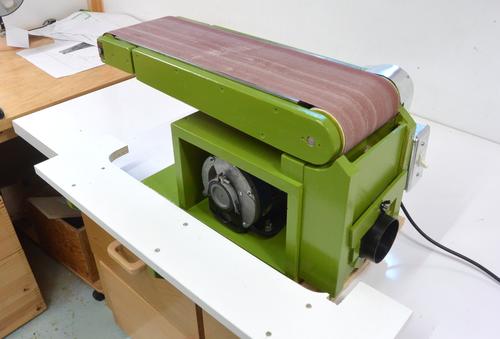

This homemade belt sander can be used as a horizontal belt sander, or be tipped on its side onto a base to use as an edge belt sander.

I have produced a detailed set of drawings for this machine. You can see a preview of the plans so you can get a better sense of what's inside before buying.

Included with the plans:

  • Detailed drawings of every part of the sander

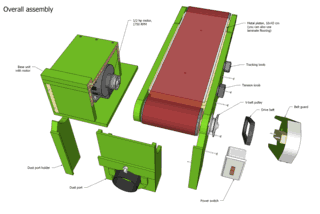

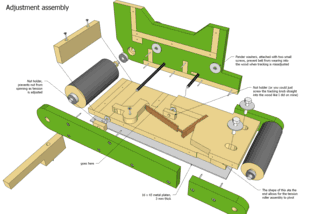

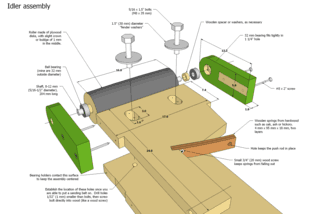

  • 18 assembly drawings
  • Full-scale printable templates of all parts.
  • Detailed building instructions for the sander, with over 150 photos
  • More photos of the finished sander

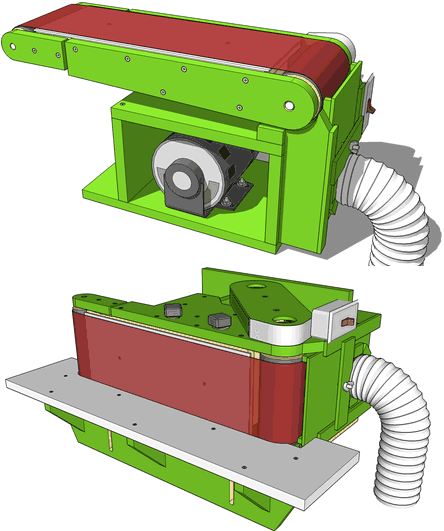

  • Also a SketchUp model of the belt sander, which allows you to view the sander from any angle, disassemble it, or regenerate each of the views in the plans by clicking on the 'scene' tabs in SketchUp.
Also see the specifications

A short video about the plans
