Air engine plans

Air engine plans

Regular price $14.00 CAD
Regular price Sale price $14.00 CAD
Sale Sold out
Shipping calculated at checkout.
Plans for my wooden air engine.

The plans include:

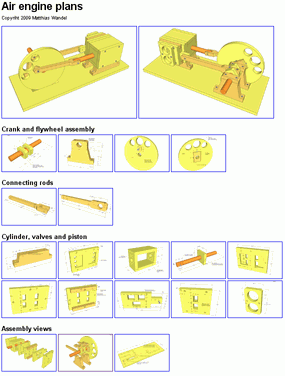

  • Detailed dimensioned drawings of all the parts, as well as assembly views.

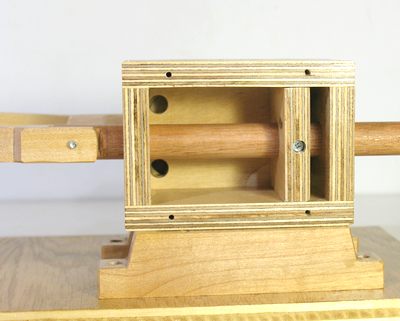

  • Detailed photographs of all the disassembled parts of the engine, as well as larger photographs of the assembled engine
  • 1:1 scale printable templates for the part shapes
  • Illustrated principle of operation (how it works)

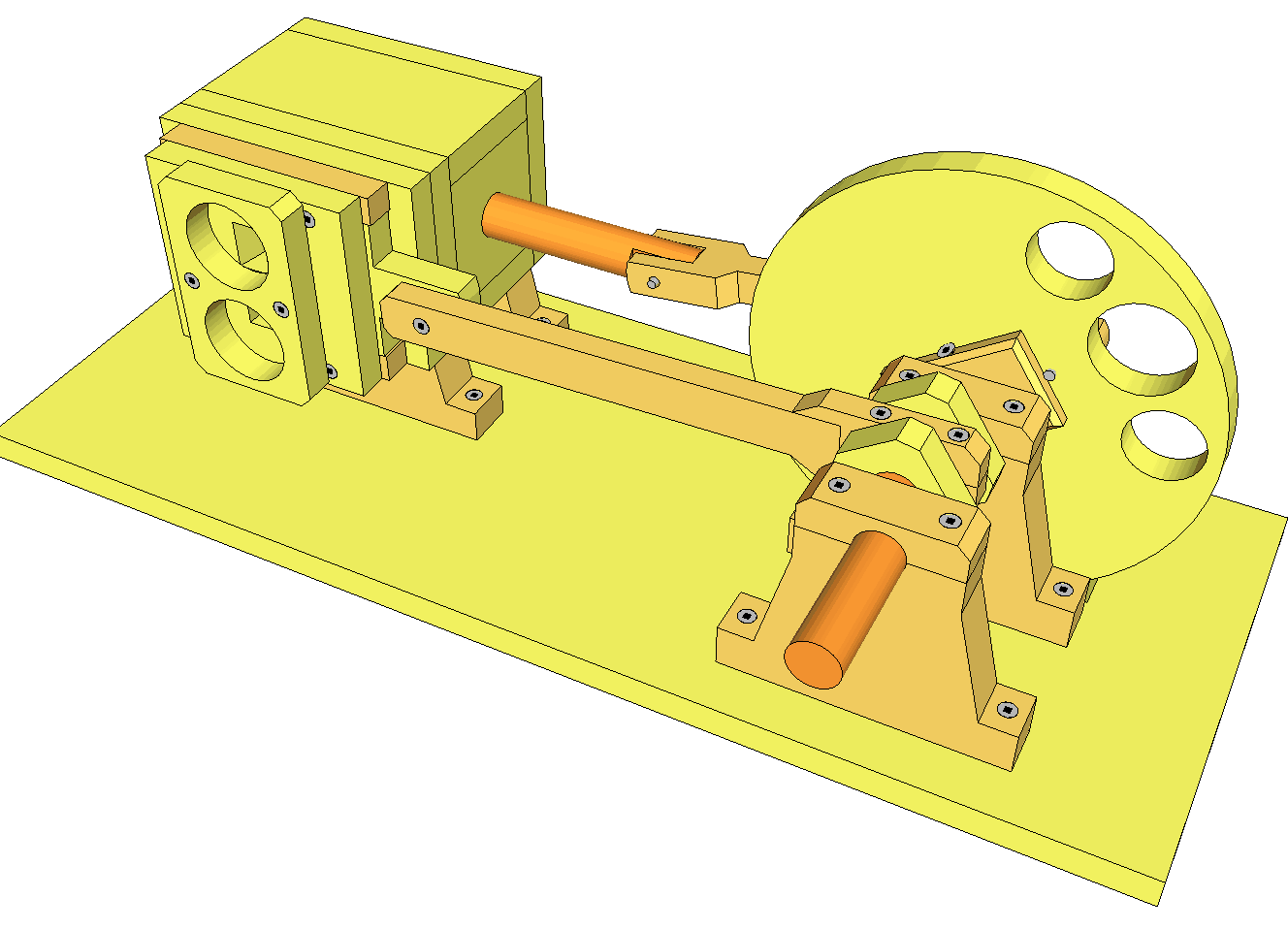

  • A SketchUp model of the engine, which allows you to view and render the engine from different angles, disassemble the engine, as well as regenerate each of the views in the plans by clicking on the 'scene' tabs.
  • Instructions on building the air engine and things to watch out for.

The engine can be built from solid birch plywood, and a few small pieces of Maple. A table saw, drill press, and band saw or scrollsaw are all the machinery you need.

The plans are in Metric units, except for drill and dowel sizes, which are in imperial units.
