Marble machine 2 plans

Marble machine 2 plans

Regular price $23.00 CAD
Regular price Sale price $23.00 CAD
Sale Sold out
Shipping calculated at checkout.
A detailed set of plans for marble machine 2.1

You can see a preview of the plans so you can get a better sense of what's inside before buying.

The plans include:

  • Detailed instructions for building the machine, including over 250 photos.

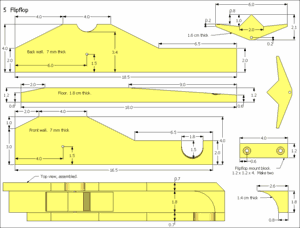

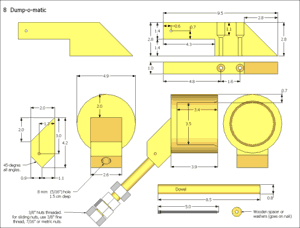

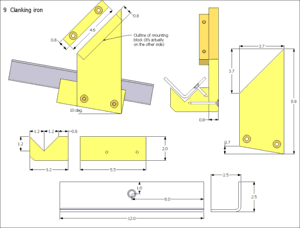

  • 21 pages of drawings, scaled 1:1 for pasting onto the wood and cutting out
  • (and because the plans are in electronic copy, you can always print them again if you make a mistake)

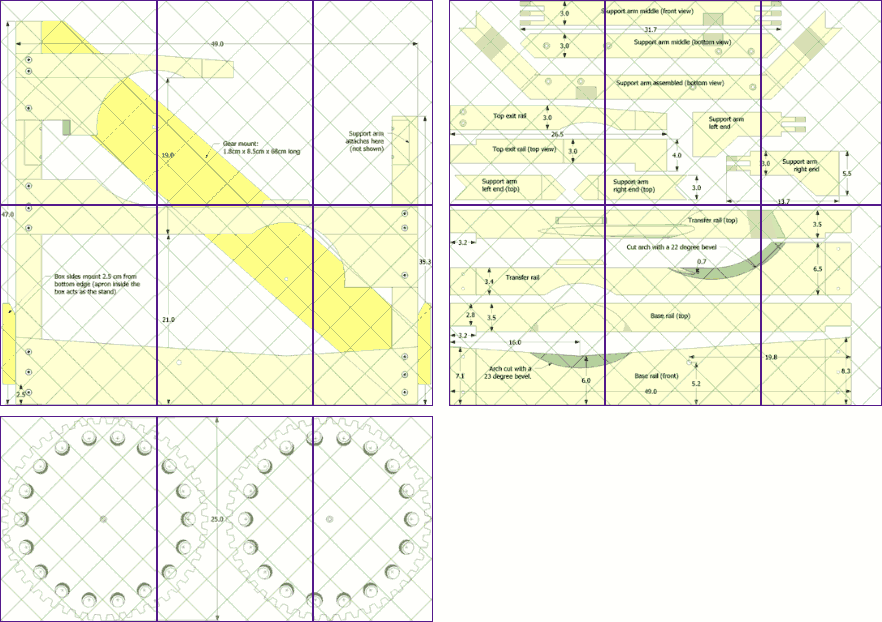

  • Multi-page 1:1 drawings for the large parts (you paste together several regular sized pages)
  • All drawings are included as images in HTML as well as PDF
  • Offline / more easily printable version of the building instructions

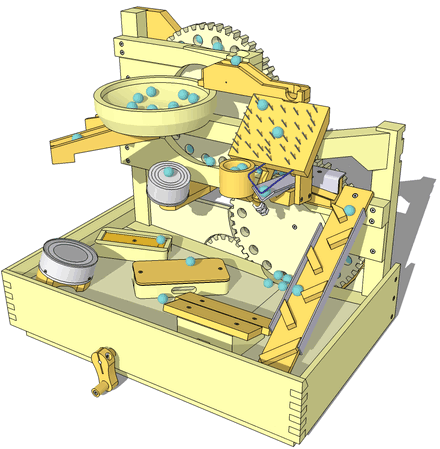

  • A SketchUp model of the machine, which allows you to view the machine from any angle, disassemble it, or regenerate each of the views in the plans by clicking on the 'scene' tabs in SketchUp.

The completed machine is 52 cm wide, 35 cm deep, and 47 cm tall.

The plans are in metric units, except for drill sizes, which are in inches and metric.
