I love showing off these plans, and have included a preview of the plans so you can get a better sense of what's inside before buying.
The plans include:
Detailed plans and instructions for building the marble pump
Plans for the marble run building blocks
Plans for the marble machine
A total of 18 pages of drawings and illustrations
Detailed instruction on building the machine, including over 100 photos of the construction.

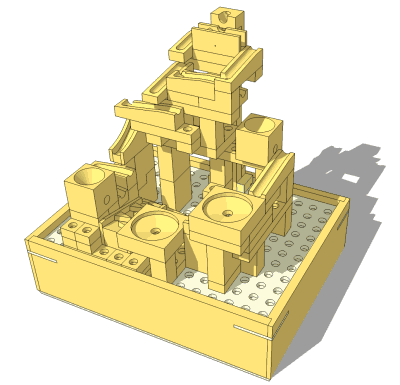

A SketchUp model of the machine, which allows you to view the machine from any angle, disassemble it, or regenerate each of the views in the plans by clicking on the 'scene' tabs in SketchUp.

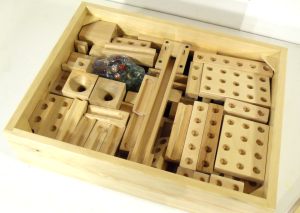

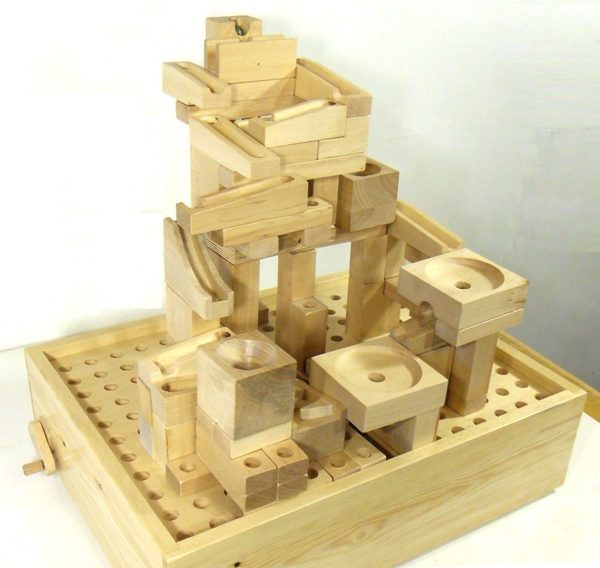

I have also produced a video on building the marble pump The base of the machine is 52x40 cm. It is 51 cm high when set up, 15 cm high in the box.
The plans are in metric units, except for drill and dowel sizes, which are in imperial units.
