Non-tilting router lift plans

Non-tilting router lift plans

Regular price $14.00 CAD
Regular price Sale price $14.00 CAD
Sale Sold out
Shipping calculated at checkout.
Plans for the non-tilting router lift
A conveniently located hand crank allows raising and lowering the router quickly.

See the preview of the plans.

The plans include:

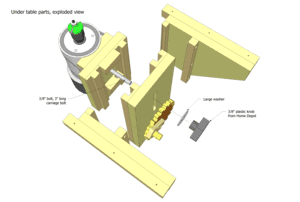

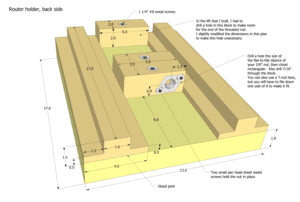

  • 13 pages of detailed dimensioned drawings of all the parts and assembly views

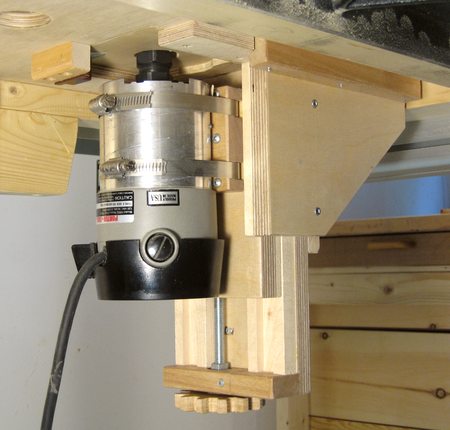

  • Detailed high-res photographs of various parts of the lift.

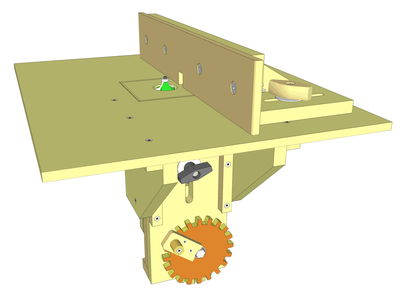

  • A SketchUp model of the lift, which allows you to view the lift from any angle,
  • Graphical hardware list (with pictures of all the hardware bits)
  • A cut list

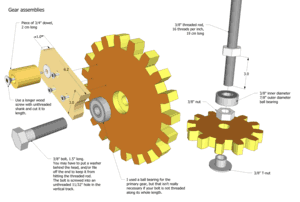

  • Printable template and for the gears
  • Detailed instructions for building this router lift

The plans are in Metric units, except for drill and dowel sizes, which are in imperial units.
