Small dust collector plans

Small dust collector plans

Regular price $24.00 CAD
Regular price Sale price $24.00 CAD
Sale Sold out
Shipping calculated at checkout.
The small dust collector is smaller than a big dust collector, and is quieter and uses less power than a shopvac. Using a cyclone made of transluscent buckets for collection makes it easy to see when it gets full. Handles fine chips and planer shavings.

Included with the plans:

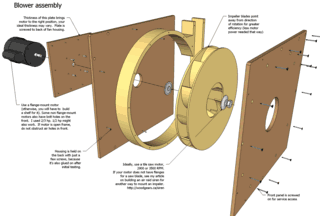

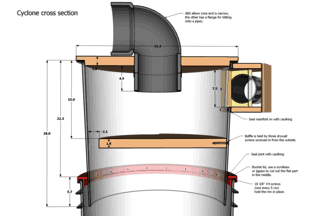

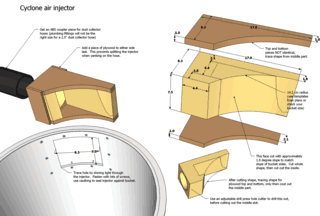

  • Detailed drawings of every part of the dust collector

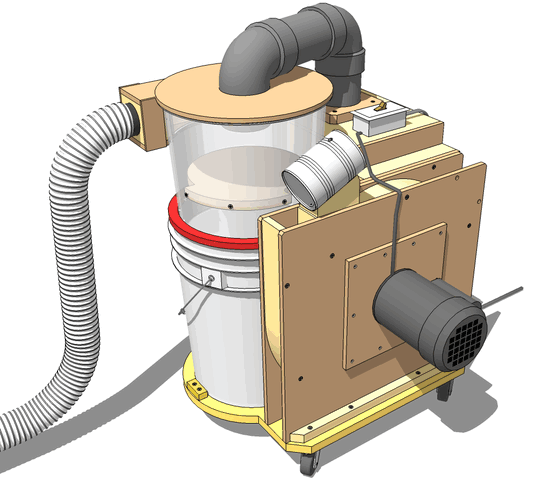

  • Dimensioned 3D views and assembly drawings

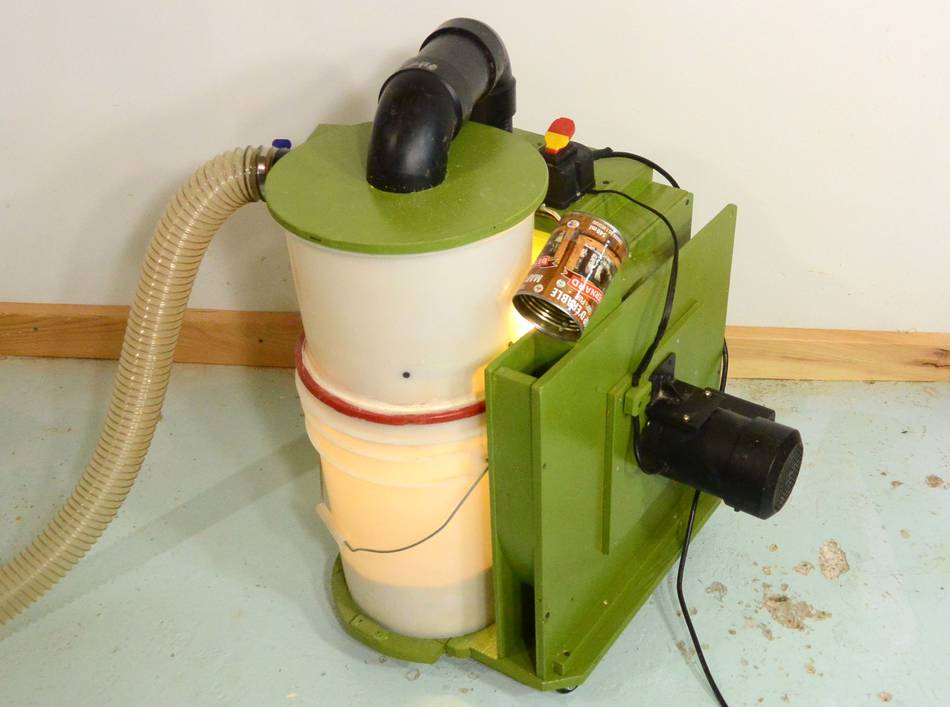

  • More detailed photographs of the finished unit
  • Full-scale 1:1 drawings of the critical parts so you can just paste them onto the wood instead of making measurements.
  • Detailed instructions on how to build it, with over 130 photos

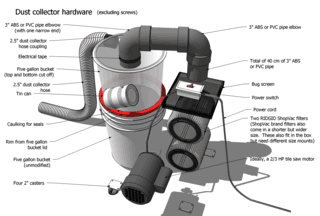

  • Hardware list
  • A SketchUp model which allows you to view them from any angle, disassemble it, or regenerate each of the views in the plans by clicking on the 'scene' tabs in SketchUp.
More about this dust collector

See what's in the plans

The plans are in metric units, except for drill and dowel sizes, which are in imperial units.
