1x42" and 1.5x48" belt sander plans (2 plans 1 package)

1x42" and 1.5x48" belt sander plans (2 plans 1 package)

Regular price $22.00 CAD
Regular price Sale price $22.00 CAD
Sale Sold out
Shipping calculated at checkout.

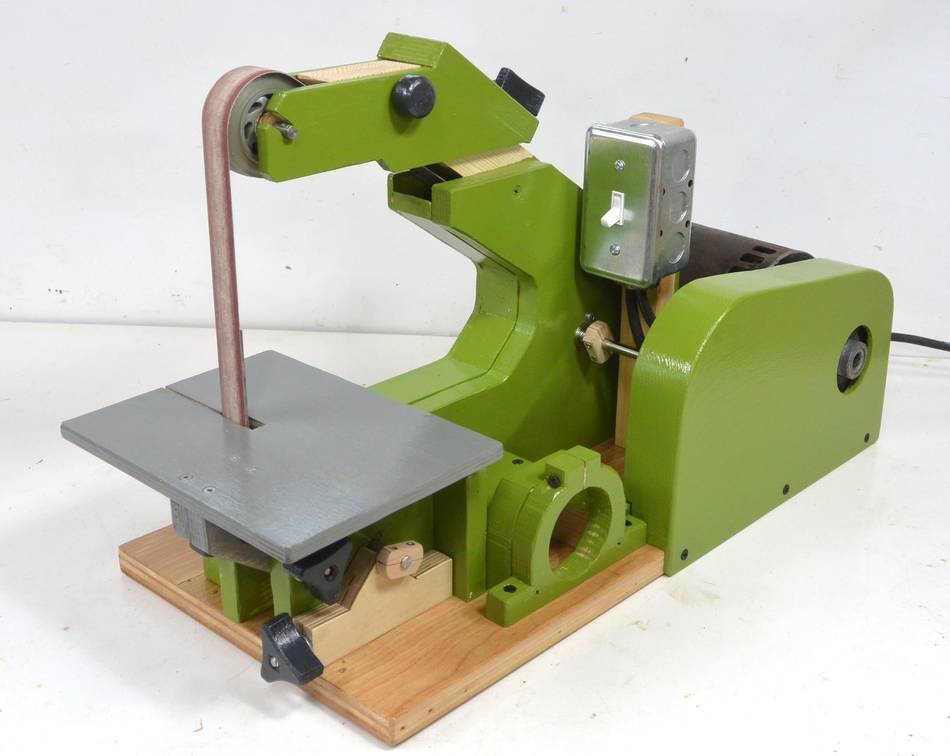

I am including the plans for my 1x42" strip sander and 1.5x48" strip sander in one package so don't have to decide which version to build ahead of time. Both are very similar in construction, but one is direct drive, the other belt driven. Personally I mostly use the strip sander XL, but the narrower belts on the 1x42" sander can get into places that the XL sander can't

You can see a preview of the plans so you can get a better sense of what's inside before buying.

Included with the plans:

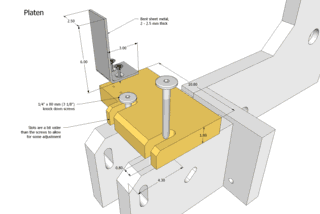

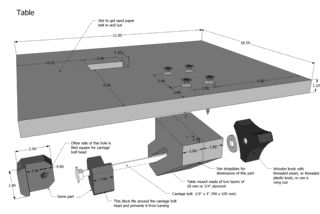

  • Detailed drawings of every part of the sander

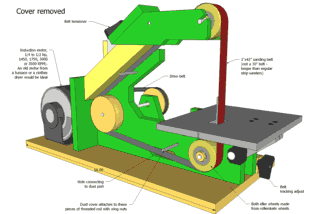

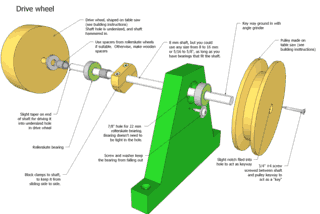

  • 11 assembly drawings

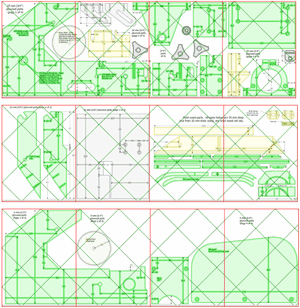

  • Full-scale printable templates of all parts.
  • Detailed building instructions for the sander, with over 100 photos
  • More photos of the finished sander

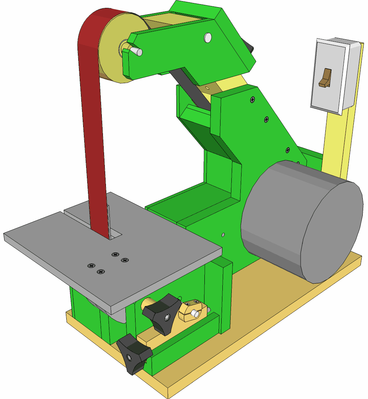

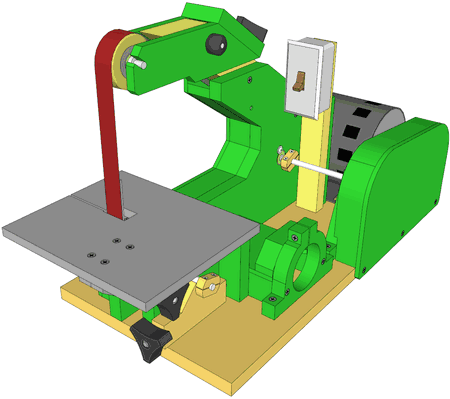

  • Also a SketchUp model of the belt sander, which allows you to view the sander from any angle. You don't need to use SketchUp to build the sander.
Also see the 1x42" sander specifications and 1.5x48" sander specifications

See what's in the plans, and watch a Video about the 1x42" plans

The plans are in metric units, except for drill and shaft sizes, which are in imperial units.
