Table saw plans
Table saw plans
Regular price
$14.00 CAD
Regular price
Sale price
$14.00 CAD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

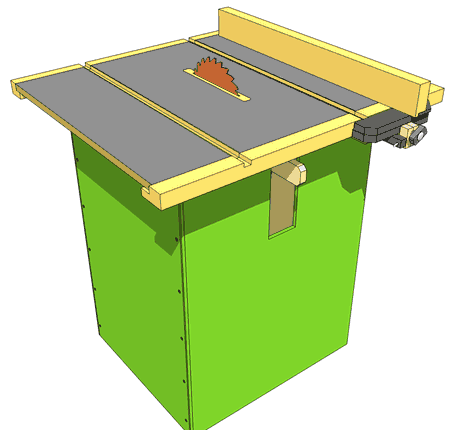

This homemade table saw is designed to be simpler to build than my first one, but it does not have a tilt mechanism. (The tilt mechanism on verison 1 was difficult to build and align and needed expensive high quality plywood to be sturdy enough, which is why this (version 2) does not have a tilt mechanism).
I have produced a detailed set of drawings for this machine. You can see a preview of the plans so you can get a better sense of what's inside before buying.
Included with the plans:<br? <ul=""> </br?>

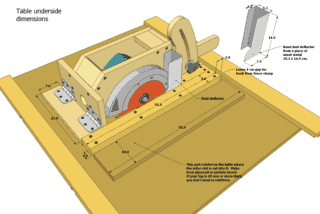

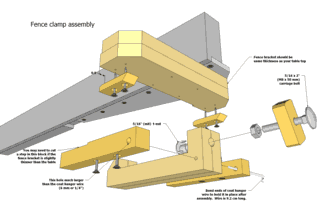

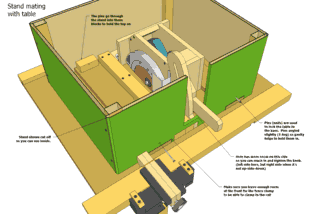

- Detailed drawings of every part of the saw
- 19 drawings and illustrations of the parts
- Full-scale printable templates of many parts.

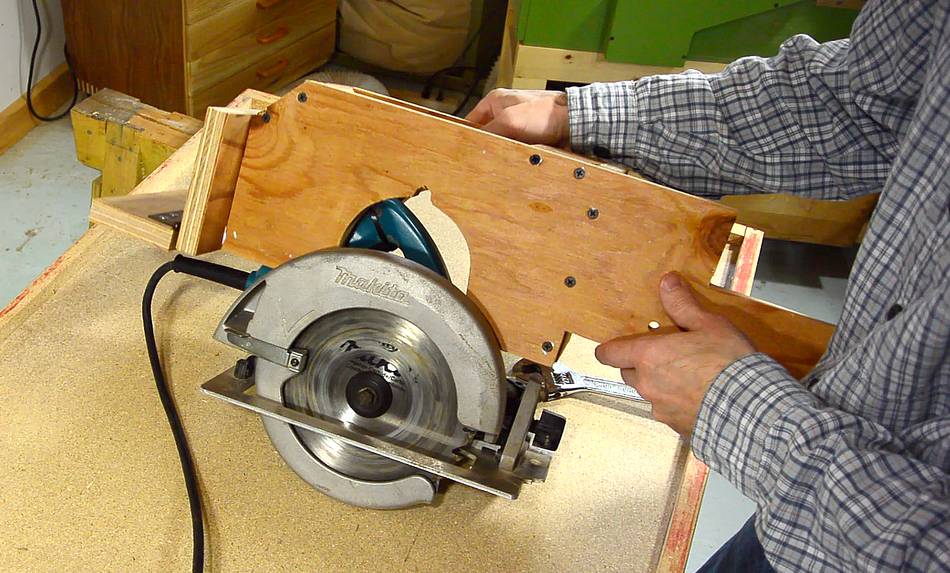

- Detailed building instructions for the saw, with over 150 photos
- More photos of the finished table saw

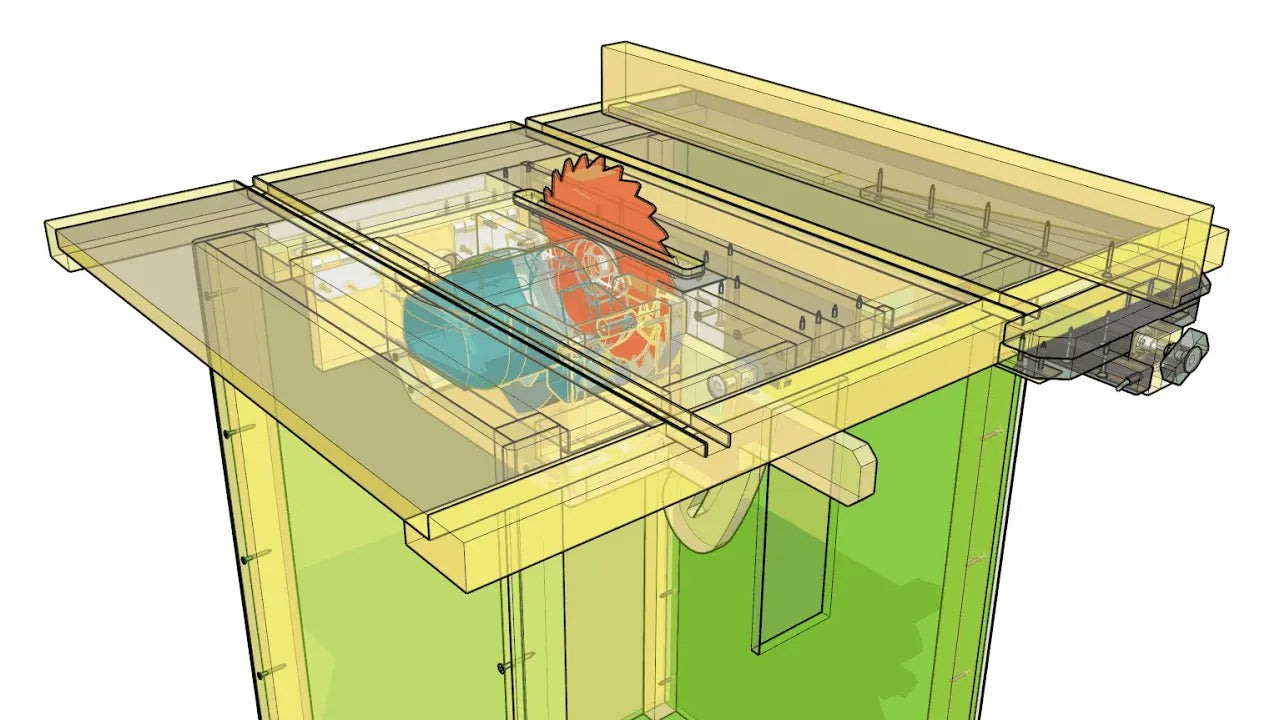

- A SketchUp model of the table saw, which allows you to view the table saw from any angle, disassemble it, or regenerate each of the views in the plans by clicking on the 'scene' tabs in SketchUp.

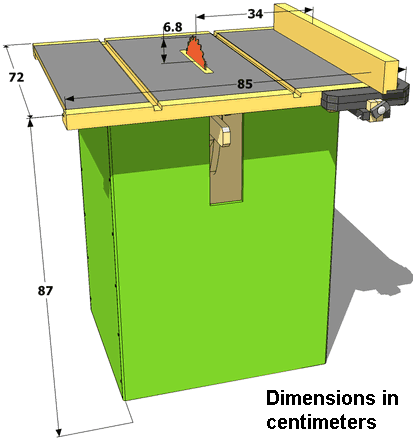

The plans are in metric units, except for drill and shaft sizes, which are in imperial units.
