Wooden combination lock plans

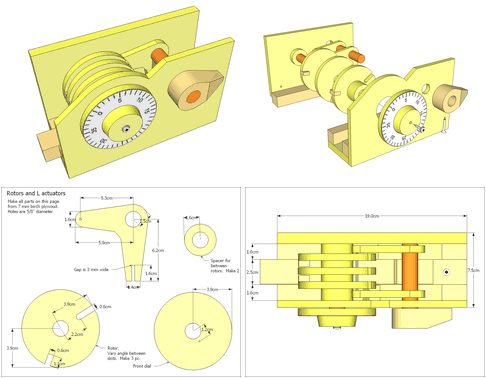

Detailed plans for the wooden combination lock. The images at left are just some of the drawings from the plans.

The plans include:

• Plan views of all the parts
• Printable 1:1 drawings PDF file to help cut out the parts

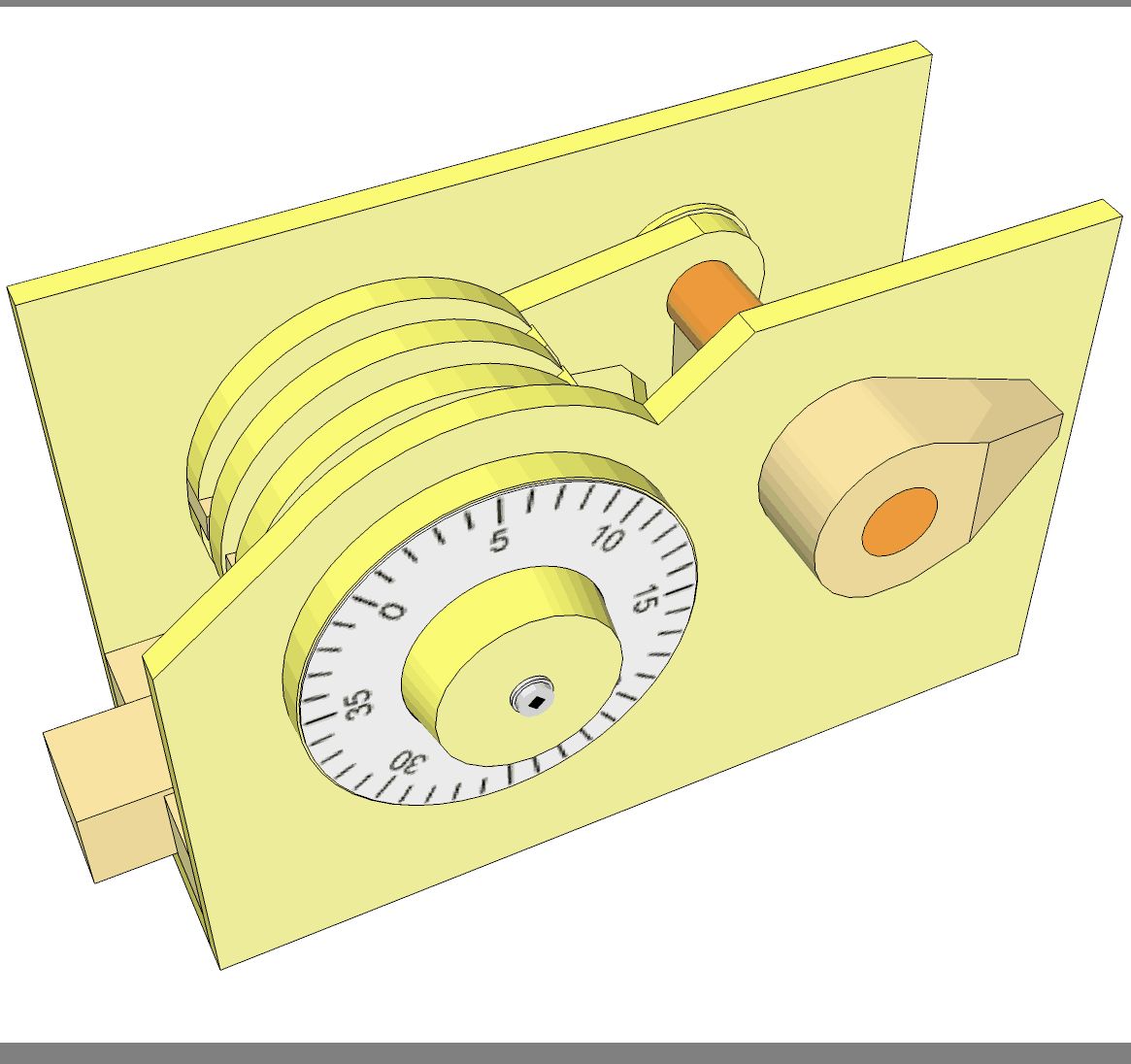

• Exploded 3D views of the assembly
• Detailed building instructions

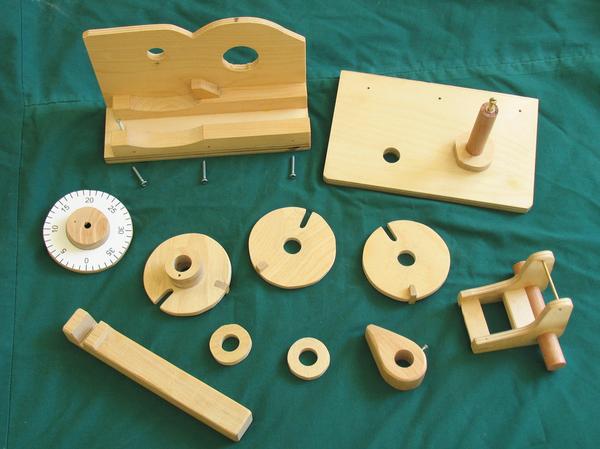

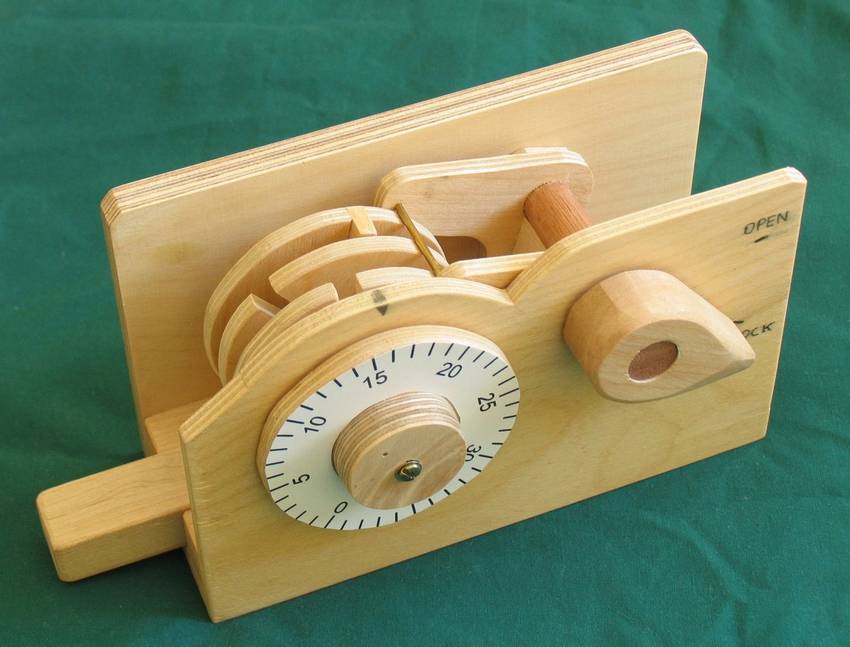

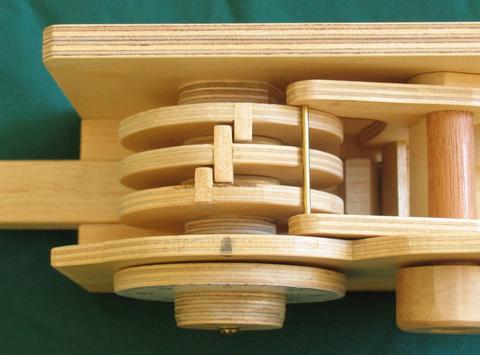

• Detailed photographs of all the parts as built.
• SVG Files for a laser cut version from 6 mm plywood.
• A SketchUp model of the lock, which allows you to view and render the lock from different angles, as well as disassemble the lock.

The plans are in Metric.
